Embedded Hardware

Embedded Hardware

CPU Modules,PC/104 Power Supplies,Ethernet Switch Modules , GPS Receiver Modules Wireless/Telematics and Rugged Embedded Systems


CPU Modules

  • These rugged modules are optimized for mission-critical, harsh environments where failure is not an option.
  • With an impressive selection of CPUs that are based on chipsets from Intel and AMD, Alltronix is sure to have the right product to drive your application.
  • With strict adherence to AS9100 and ISO 9001 documented standards and IPC-6012 Class 3 PCB standards

PC/104 Power Supplies

  • XPWR104HR-75W-PC/104 75 Watt Embedded Power Supply
  • PC/104 Form Factor
  • PC/104 Stackable Bus Structure
  • The XPWR104HR-75W power supply module provides a compact solution for high performance PC/104 systems requiring a reliable power supply.

Ethernet Switch Modules

  • We gives system integrators the ability to quickly configure robust Ethernet switch and router solutions for immediate deployment.
  • StackNET® Expandable GigE Switch Family
  • These PCIe/104 systems are fully expandable and can be scaled as programs grow.
  • Built to operate under high-vibration conditions and in harsh temperatures from -40 to +85°C, StackNET® is an ideal choice for high-reliability applications.

Rugged Network Systems

Rapid uptime, expert support, long lifecycle.


IDAN

compatible, stackable COTS modules with standard PC connectors. Streamlines system development and enables quick uptime.


HiDANplus

modular, IP67 and IP69 (protected against dust and water ingress) systems with user-defined cylindrical connectors. Includes EMI gasketing and RF shielding.


Pre-Configured

a selection of systems pre-engineered for processing, networking, data collection and other industry needs.

Alltronix has configuration options to meet your requirements

  • Board-level COTS Building Blocks (IDAN)

    • We call this solution “IDAN.” System configuration is as simple as choosing the desired modules, and adding a lid, base, and bolts. Performance-rich systems can be achieved with minimal build time, and without engineering or design fees.

  • System-level COTS Building Blocks (HiDANplus)

    • watertight packaging with internal signal raceways, RF shielding and locking cylindrical connectors. This solution is called “HiDANplus.” With HiDANplus, modules can be grouped by functionality, and can include a variety of connectors and pinouts.we offers a full range of menu options including connector styles, dust caps, and mounting hole patterns. The HiDANplus architecture has been successfully tested to IP69 for protection against dust and water ingress.

  • Pre-Configured COTS Systems

    • We have a number of pre-configured/pre-engineered embedded systems which are optimized for processing, data collection, and specialty applications.

GPS Receiver Modules

PC/104 GPS Receivers, Cellular & Telematics COM


GPS25165HR

GPS Satellite Receiver

  • The GPS25165 and GPS35165 are PC/104 modules that combine a GPS receiver with an inertial sensor and altimeter/barometer sensor. These GPS products utilize the Linx RXM-GNSS-TM GPS receiver.
  • This low-power solution supports NMEA-0183 protocol. Support for +3.3V and +5V active antennas is provided. The GPS25165HR and GPS35165HR utilize one PCIe x1 link to provide three 16C550 compatible serial ports: one for GPS, one for sensors, and one for onboard serial connector.

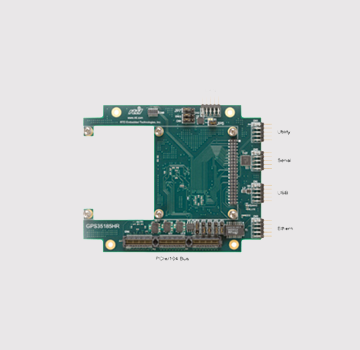

GPS35185HR

PCIe/104 GPS Carrier Module for the NovAtel OEM729 or OEM628 Series

  • This GPS receiver carrier module from RTD uses either the NovAtel OEM729 or OEM628 GPS modules. These receivers will work reliably in a variety of installations.
  • Integrated on the GPS35185HR board is a quad Exar XR17D154 PCI UART with four serial ports. Connect any +5V Active GPS antenna directly to the MMCX-connectors of the OEM628. In IDAN® installations the antenna connection is brought to the front side of the IDAN frame.

GPS35190HR

PCIe/104 GPS Carrier Module for the Trimble BD970

  • The GPS35190HR is a low-power wide operating temperature range GPS receiver carrier module for use with the Trimble BD970. This receiver will work reliably in a variety of installations.
  • Integrated on the GPS35190HR board are four complete 16C550 compatible serial ports that can be flexibly configured with jumpers to communicate with GPS or I/O connectors. The GPS antenna connects directly to the BD970. Starter kits are available.

Wireless/Telematics

PC/104 Wireless Ethernet Modules


WLAN25203ER-GSM

Wireless LAN Module on Mini PCIe Carriers

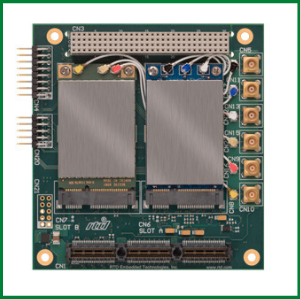

  • The WLAN25203-GSM and WLAN35203-GSM are dual-slot mini PCIe card carrier modules with an Atheros AR9590 WLAN module and a Sierra Wireless AirPrime modem installed.
  • The dual-band design of the Atheros module enables universal connectivity to any 802.11 network, including legacy 802.11b/g and 802.11a/g, while the Sierra Wireless module provides LTE, DC-HSPA+, HSPA+, HSDPA, HSUPA, WCDMA, GSM, GPRS, EDGE, CDMA, and GNSS connectivity for networking and M2M applications over several radio frequency bands and supports 2G / 3G roaming.

WLAN25203ER

Wireless LAN Module on Mini PCIe Carriers

  • The WLAN25203-GSM and WLAN35203-GSM are dual-slot mini PCIe card carrier modules with an Atheros AR9590 WLAN module and a Sierra Wireless AirPrime modem installed.
  • The dual-band design of the Atheros module enables universal connectivity to any 802.11 network, including legacy 802.11b/g and 802.11a/g, while the Sierra Wireless module provides LTE, DC-HSPA+, HSPA+, HSDPA, HSUPA, WCDMA, GSM, GPRS, EDGE, CDMA, and GNSS connectivity for networking and M2M applications over several radio frequency bands and supports 2G / 3G roaming.

WLAN18202ER

PCI-104 Wireless LAN Module

  • The WLAN18202 provides wireless communication for PC/104-Plus and PCI-104 based systems. It communicates via the standard 802.11a/b/g protocols.
  • This wireless LAN module can be used to connect multiple PC systems together. The WLAN18202 uses the 5004 MP Atheros 4G Mini-PCI module from Netgate.
